Spun catridge

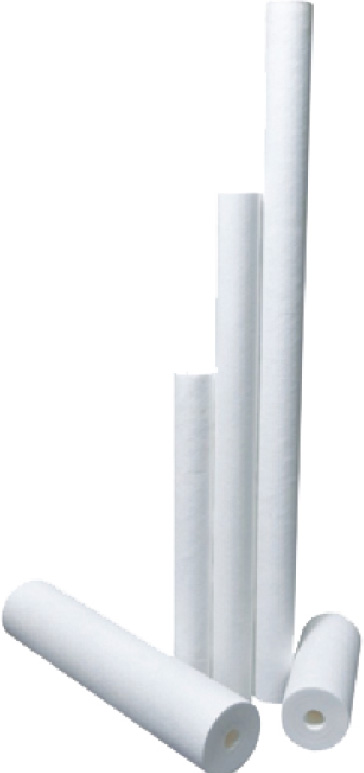

 Spun Filter Cartridge

Spun filter cartridges are made up of 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surface. Filter cartridges are available with core & without core version. The superior structure remains integral even under severe operating conditions and there is no media migration. Polypropylene fibers are blown continuously on central molded core, without any binders, resins or lubricants.


Unfiltered fluid passes through depth filter matrix and enables the progressive retention of finer particles, which provides high efficiency, high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Salient Features


Free of surfactants, binders and adhesives


Excellent flow with low pressure drop


High dirt holding capacity


100%Polypropylene for wide chemical compatibility


High strength & pressure resistance


One piece construction

Technical Specifications

» Sizes:

10”, 20”, 30”, 40”, 50” Long

» Micron Rating:

1, 5, 10, 25, 50, 75, 100

» Outer Diameter:

60 mm (2”), 63.5 mm (2.5”),   101 mm (4”), 114mm (4.5”)

» Inner Diameter:



» Spun filter cartridges are made up of 100 % poly-propylene


» Food & Beverages:

Bottled water, Flavours, Polishing Lines

» Pharmaceuticals:

Base product clarifications, Membrane pre-filter

» Fine Chemicals:

Solvents,Process Streams,Water Purification

» Magnetic coating:

Dispersions, Coating Lines, Solvents

» Petrochemicals:

Water flood, Completion Fluids, Amines

» Cosmetics:

Alcohols, Essential oils , Water lines

» Water Treatment:

Membrane Protection, Resin Trap

» Metal Finishing:

Plating solution, paint and resin products, Wash

» Electronics:

Electroplating, Etching, Image development
